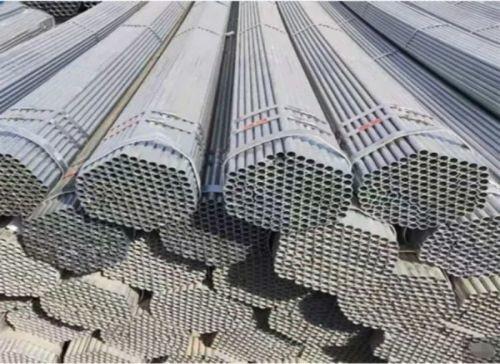

— 304,304L Stainless Steel Pipe —
Description
Stainless steel pipe are light weight and are widely used in the
manufacture of mechanical parts and engineering structures. Mainly
used in petroleum, chemical, medical, food, light industry,
mechanical instrumentation and other industrial pipelines and
mechanical structural components
· Material: 201,302,303,304,304l,316,316l,321,309s,310s,904l etc
· Size(round pipe): 9.5-219 mm or customized
· Size (square pipe): 10×10-150×100 mm or customized
· Size (oval pipe): 30×15,80×40 mm or customized
· Thickness: 0.24-3 mm
· Length: 6m or according to customer’s request
· Outer diameter: 8-219mm
· Tolerance: Outer diameter :±0.2mm Thickness :±0.02mm Length
:±0.5mm
· Process method: Code drawn, annealed with nitrogen protection,
ultrasonic,automatic shape, polished
· Finishing: A: sanded B: 400#-600# mirror C: hairline brushed D:
TIN titanlum
· E : HL brushed & mirror (two kinds of finishing for one pipe)
| Standard: | ASTM EN DIN GB ISO JIS | Certification: | SGS,ISO,ROHS |
| Length: | 6000-25000mm,etc | Surface: | 2B,2D,BA,NO.1,NO.4,NO.8,8K,Pickling,Bright; mirror, checkered,embossed,hair line, sand blast, Brush, etching, etc |
| Diameter: | 3mm--1000mm, etc | Production Process: | Cold Drawn,Cold Rolled,Bright Anneal etc |
| Thickness: | 0.5-40mm | Surface Treatment: | Standard export package, suit for all kinds of transport, as
required. |
| Export Packing: | Waterproof Paper, Steel Strip Packed and other Standard Export
Seaworthy Package, or customized package | Loading Port: | Pickled,Passivation,Inside & Outside Mechanical Polishing, BA,
Electropolishing (EP) |
| Heat Treatment Condition: | Solution Annealing and water rapid quenched, Bright Annealing,Stess
Relieving Heat Treatment for U tubes | Trade Terms: | FOB, CNF,CIF |
| Grade: | 201,202,304,304L,309,309S,310S,316,316L,316Ti,317L,321,347H,409,409L,410,410S,420(420J1,420J2),430,436,439,441,444,446
etc1.4301, 1.4307, 1.4541, 1.4401, 1.4404 ,1.4571, 1.4438, 1.4539,
1.4547, 1.4529, 1.4562, 1.4410, 1.4878, 1.4845, 1.4828, 1.4876,
2.4858, 2.4819 |
| Advantage: | 1. high quality surface, clean finished2. corrosion & oxidation
resistance, more durable3. high ductility and good toughness4. high
strength and to deform5. the use to diversity |
| Container Size: | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)40ft
GP:12032mm(Length)x2352mm(Width)x2393mm(High)40ft
HC:12032mm(Length)x2352mm(Width)x2698mm(High) |
| Grade | C (Max) | Mn (Max) | P (Max) | S (Max) | Si (Max) | Cr | Ni | Mo | Nitrgeo(Max) | Cu/Other |
| 201 | 0.15 | 5.5-7.5 | 0.06 | 0.03 | 1.0 | 16.0-18.0 | 0.5-1.0 | -- | 0.25 | -- |
| 202 | 0.15 | 7.5-10.0 | 0.06 | 0.03 | 1.0 | 17.0-19.0 | 1.5-2.5 | -- | 0.25 | -- |
| 304 | 0.08 | 2.0 | 0.045 | 0.03 | 1.0 | 18.0-20.0 | 8.0-10.0 | -- | 1.0 | |
| 304L | 0.03 | 2.0 | 0.045 | 0.03 | 1.0 | 18.0-20.0 | 8.01-10.5 | -- | 0.1 | -- |
| 309S | 0.08 | 2.0 | 0.045 | 0.03 | 1.0 | 22.0-24.0 | 12.0-15.0 | -- | -- | -- |
| 310S | 0.08 | 2.0 | 0.045 | 0.03 | 1.5 | 24.0-26.0 | 19.0-22.0 | -- | -- | -- |
| 316L | 0.03 | 2.0 | 0.045 | 0.03 | 1.0 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.1 | |
| 321 | 0.08 | 2.0 | 0.045 | 0.03 | 0.75 | 17.0-19.0 | 9.0-12.0 | -- | 0.1 | -- |
| 2205 | 0.025 | 1.27 | 0.026 | 0.0015 | 0.58 | ≤22.50 | ≤5.20 | ≤3.10 | -- | -- |
| 904L | 0.02 | 2.0 | 0.045 | 0.035 | 1.0 | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | -- | -- |
| Grade | TS(Mpa) | YS(Mpa) | EL(%) | RRA(%) | Density |
| 201 | ≥520 | ≥275 | 55-60 | - | 7.93 |
| 202 | ≥590 | ≥245 | - | - | 7.93 |
| 304 | ≥520 | ≥205 | ≥40 | ≥60 | 7.93 |
| 304L | ≥520 | ≥205 | ≥40 | ≥60 | 7.93 |
| 309S | ≥515 | ≥205 | ≥40 | ≥50 | 7.98 |
| 310S | ≥520 | ≥205 | ≥40 | ≥50 | 7.98 |
| 321 | ≥520 | ≥205 | ≥40 | ≥50 | 7.98 |
| 316L | ≥485 | ≥170 | ≥30 | ≥40 | 7.98 |
